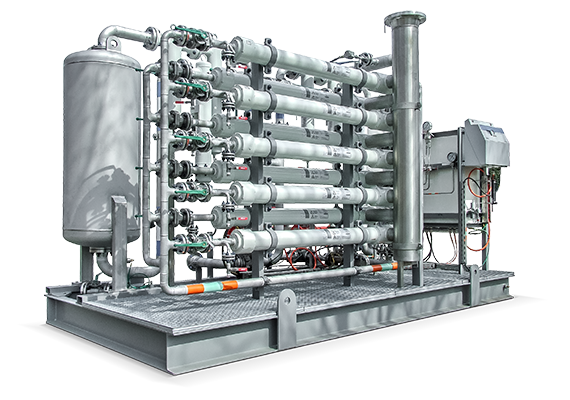

Geveke Nitrogen Generation Package

Geveke Nitrogen Generation Package

Numerous applications for fire prevention and oxidation protection in various industries call for the addition of nitrogen. Geveke provides Nitrogen Generation Packages as high quality and solution tailored for recovery of high purity nitrogen from air. With nitrogen production at site there are no dependencies on suppliers or supply shortages. This is particularly advantageous in remote areas.

Geveke Nitrogen Generation Packages.
Onsite nitrogen generation for oil and gas applications.

In the oil and gas industry and in refineries there is a wide range of applications where pure nitrogen is used.  The gas to minimizes dangers of fire and explosion risk as well as unwanted oxidation. Spots of use are piping systems, tank ventilation, dry gas seals or tank blanketing.

In many cases, the nitrogen is recovered from nitrogen bottles. This, however, means dependencies from external suppliers. If large amounts of nitrogen are required or the production plant is in a remote location (or offshore), the regular replenishment of the nitrogen bottle is not only difficult, but also expensive and time consuming. Geveke Nitrogen Generation Packages produce high purity nitrogen directly from the air, so that an independent supply is ensured locally.

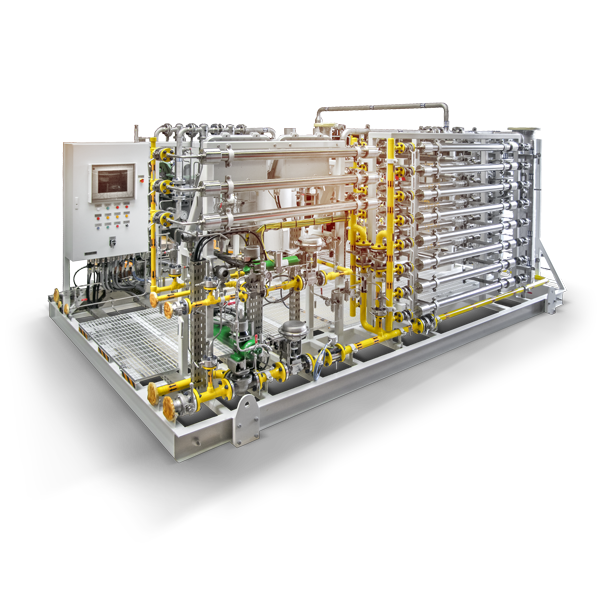

Geveke Nitrogen Generation Package

Good reasons for Geveke Nitrogen Generation Packages

Geveke Nitrogen Generation Packages are optimized for the respective application and are constructed from the highest quality materials.

Hohlfaser Membrantechnologie

Nitrogen purity to 99.5 % thanks to advanced membrane technology

The SmartFluxx membrane technology is based on the use of hollow fibers with a permeable structure. Thousands of these delicate plastic fibers are packed together in a tube of stainless steel (316) or coated aluminum. During gas-separation, the air is compressed and forced through the tube. Here, the nitrogen molecules remain adhered to the hollow fibers while other substances are filtered out. Geveke Nitrogen Generation Packages produce nitrogen with a purity of 95% -99.5%. This technology does not require additional heating modules and thus provides not only the most efficient but also the most cost-effective solution for producing nitrogen.


Experience and consulting

Individual equipment sizing

The packages are suitable in the safe area and the Ex-zones. Main factors for the construction is the required nitrogen purity, capacity, available input air pressure and the intake air flow. The basic components are the filter section, the diaphragm portion and the control portion. Variable elements are compressors, filters, instrumentation, automatic valves, controls, buffer tank, gas booster for filling the cylinder and nitrogen bottle racks.


Touch Panel

Highest safety through touch control panel

The local control panel includes a programmable logic controller (PLC) with touchscreen. All functions of the Nitrogen Generation Package are controlled and monitored by the panel. Thus the nitrogen generator can also be operated as a stand-alone unit. The unit is fully automatic. Local start and stop functions are included.


Sauerstoffanalysator

Oxygen Analyzer

To ensure the quality of the nitrogen, all Nitrogen Generation Packages are equipped with an oxygen analyzer. The analyzer measures the residual proportion of oxygen in the air generated and thus determines the quality of the nitrogen produced. If the produced nitrogen does not reach the required purity, the off-spec mix can be routed to the outside or the package will be shut down immediately.


Durchfluss Regelventil

Flow Control Valve

Behind the nitrogen membranes there is a flow control valve to adjust the nitrogen purity. The pressure in the nitrogen-membranes can be adjusted by throttling the gas flow.

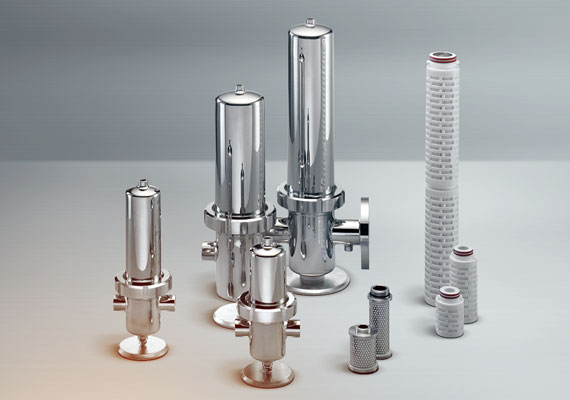

Aktivkohlefilter

Pure , high quality compressed air through activated carbon filters

The activated carbon filter is an essential element of Nitrogen Generation Package. It absorbs oil moisture and ozone in order to prevent contamination of the nitrogen and the membranes. All oil aerosols, vapors, odorant and flavoring substances are removed by the active surface of highly porous carbon.


Dust filter with high filter fineness

The filter cartridges determine the fineness of the respective filter. In Nitrogen Generation Packages quality filter cartridges having a fineness of 0.01 microns are in use.

Testing, commissioning and inspections

All components are individually tested and certified. A final functional test of the complete package is carried out before starting up, in which the nitrogen generator must have a completely error-free operation. Inspections are part of the regular maintenance schedule.

Space-saving, simple design

Nitrogen Generation Packages are compact and designed simply. The membrane modules are very compact and thus particularly well suited for applications offshore.
